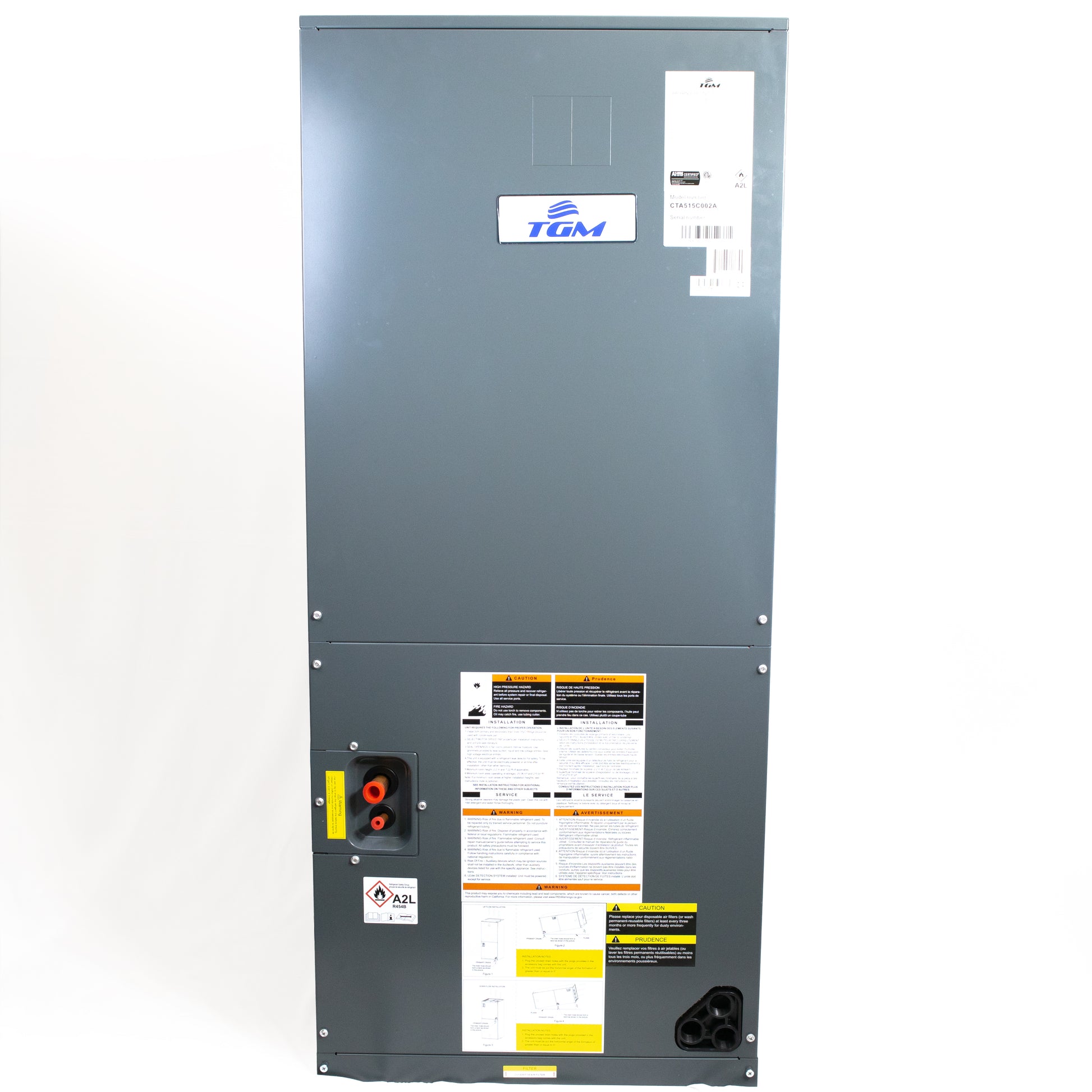

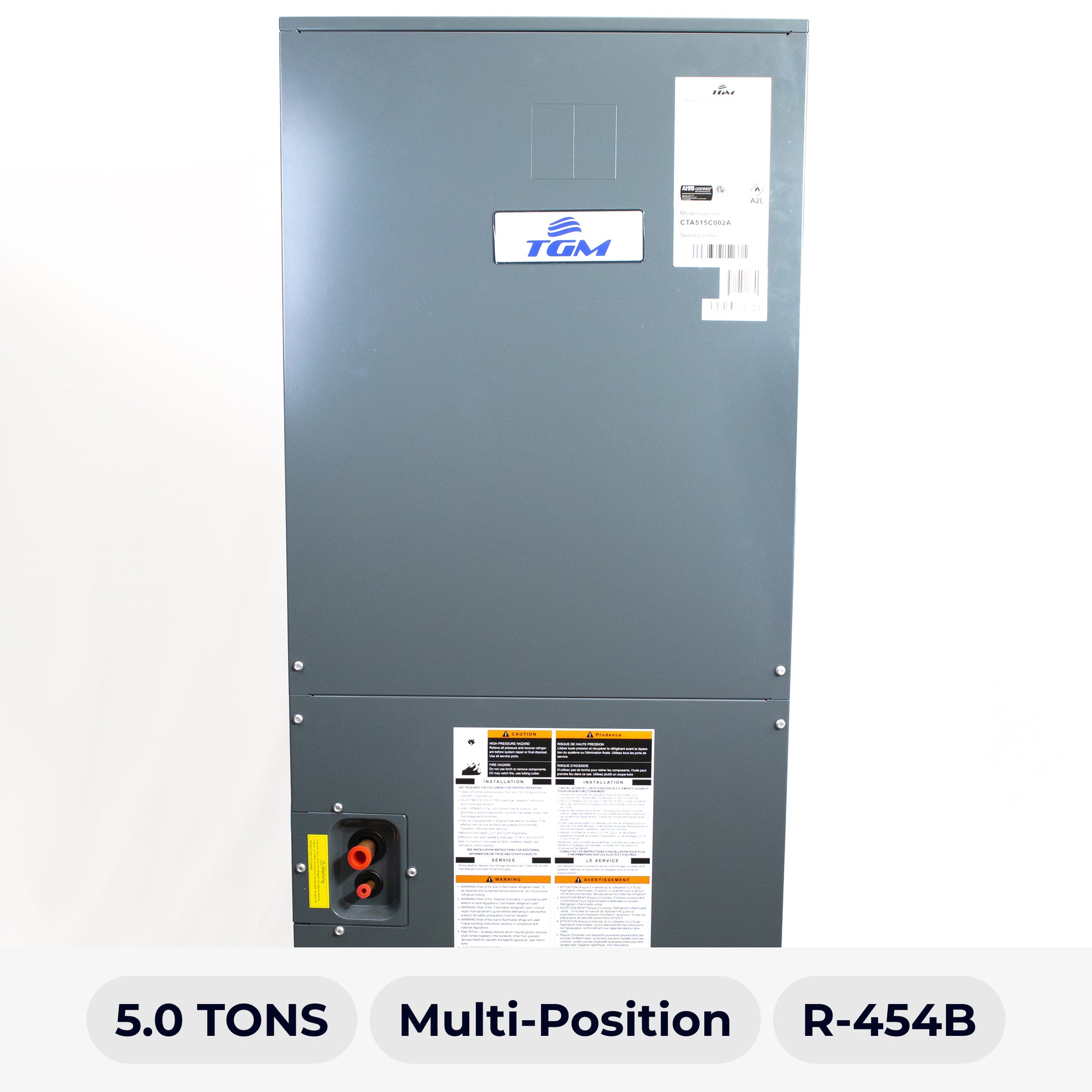

TGM 5.0 TON AIR HANDLER R-454B

The TGM CTA515C007A is a 5-ton multi-position air handler designed to work seamlessly with compatible TGM R-454B condensing units. Featuring a high-efficiency ECM motor and blower, insulated cabinet, hydrophilic aluminum coil, and a built-in leakage sensor, this unit is built for reliable indoor performance.

Its versatile 4-way convertible design supports vertical up, vertical down, horizontal left, and horizontal right airflow configurations, adapting to virtually any installation requirement. The detachable air filter is designed for easy cleaning or replacement.

This air handler is sold as an individual unit and must be paired with a compatible TGM condensing unit. Compatible condensers include the CTV515CN060A (Cooling Only) and CTV515HN060A (Heat Pump), both sold separately.

Documentation:

• Technical Specs

Key Specs:

• Airflow: 1,700 CFM
• Indoor Noise Level: 60 dB(A)
• ECM Motor Output: 560W
• Power: 208-230V / 1Ph / 60Hz
• MCA: 7A | MOCP: 10A
• Dimensions: 22.0" × 53.1" × 24.5"
