TGM 1.5 TON CONDENSER HEAT PUMP R-454B
TGM 1.5 TON CONDENSER HEAT PUMP R-454B
Couldn't load pickup availability

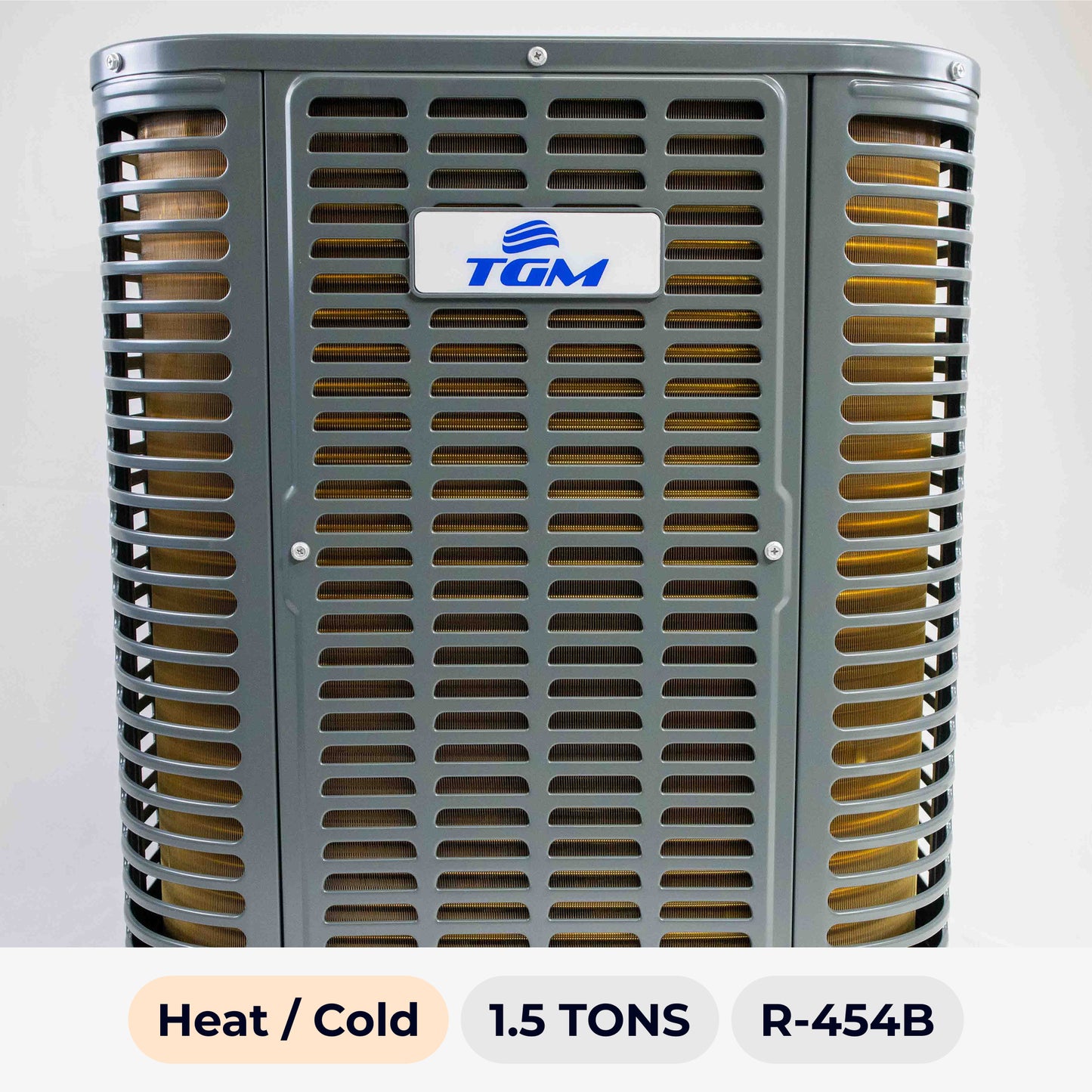

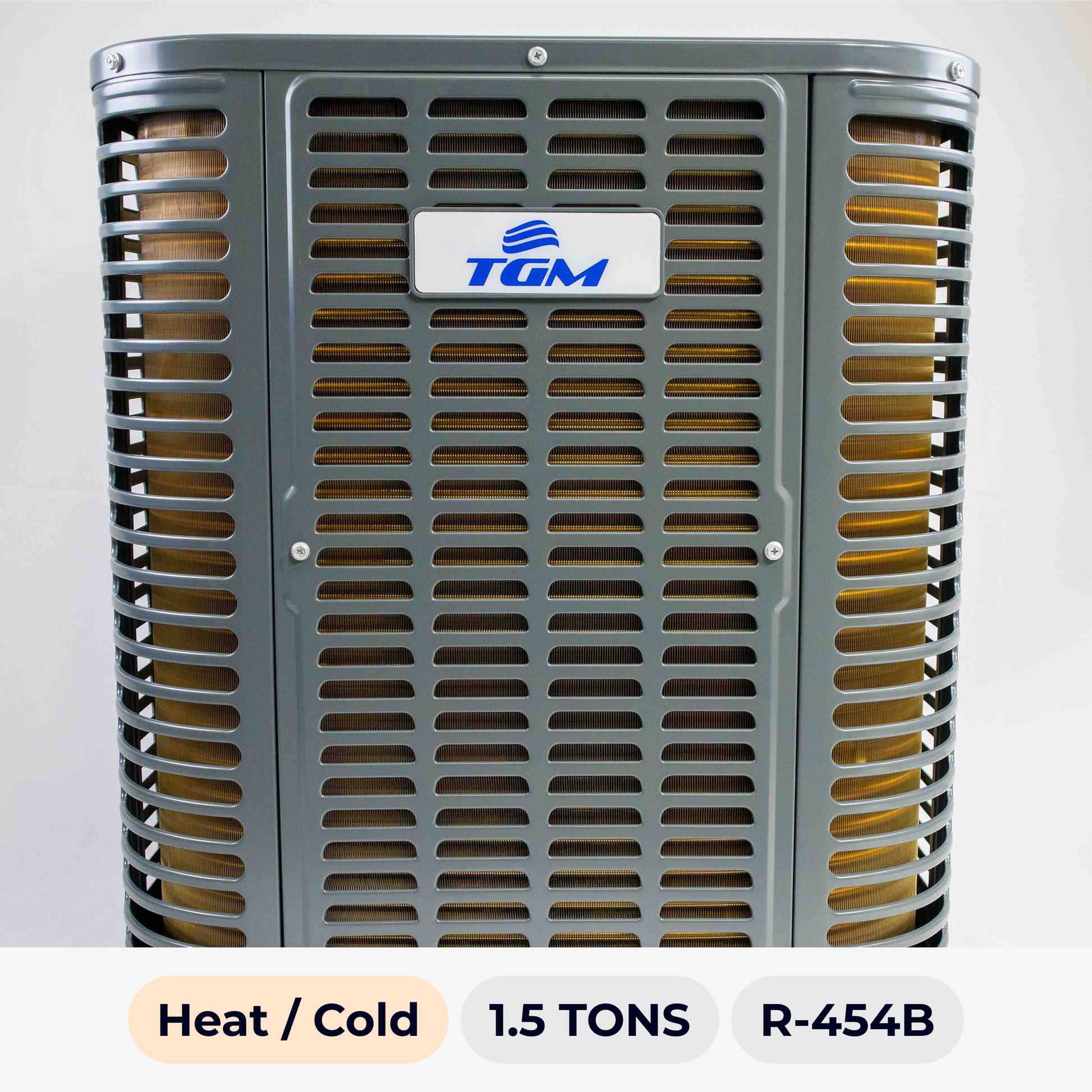

The TGM CTV515HN018A is a 1.5-ton heat pump condensing unit built for year-round comfort. Running on next-generation R-454B refrigerant, it delivers 18,000 BTU of cooling and 17,600 BTU of heating with up to 14.3 SEER2 and 7.5 HSPF2 efficiency ratings — fully AHRI Certified and ETL Listed.
Powered by an LG scroll compressor with an intelligent defrost program, anti-corrosion DC fan motor, and hydrophilic aluminum coil, this unit is engineered for reliability in demanding climates. It carries State of Florida Wind Load Approval, making it a solid choice for hurricane-prone regions.
This condenser is sold as an individual unit and must be paired with a compatible TGM air handler. Compatible models include the CTA515C001A or CTA515C002A (Multi-Position) and CTFRA515C001A (Front Return), both sold separately.
Documentation:
Key Specs:
- Cooling: 18,000 BTU | 14.3 SEER2
- Heating: 17,600 BTU | 7.5 HSPF2
- Refrigerant: R-454B
- Power: 208-230V / 1Ph / 60Hz
- MCA: 14A | MOCP: 15A
- Dimensions: 21.8" × 25.0" × 21.8"
