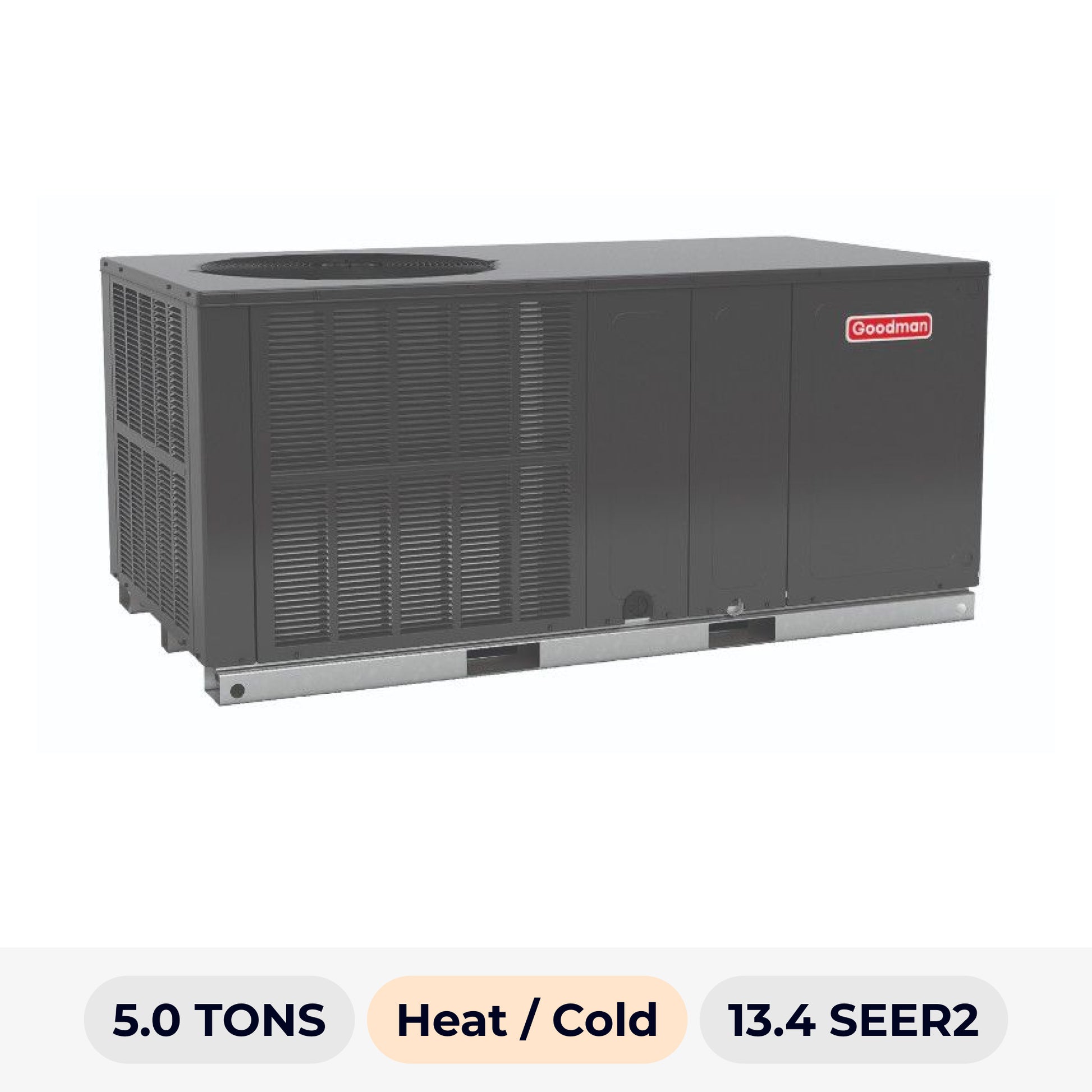

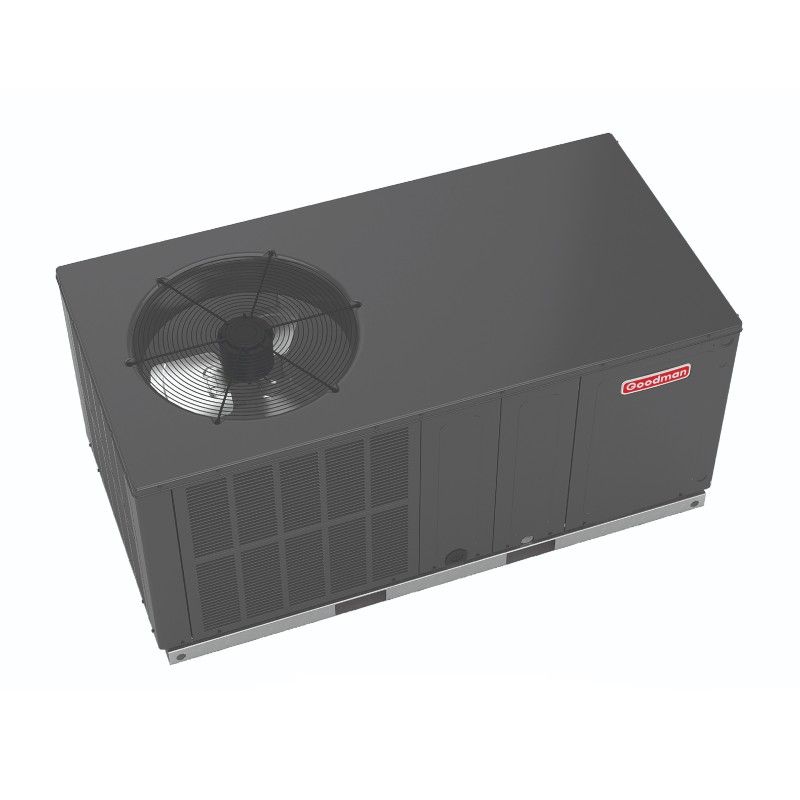

GOODMAN 5.0 TON PACKAGE UNIT HEAT PUMP R-32
GOODMAN 5.0 TON PACKAGE UNIT HEAT PUMP R-32
Couldn't load pickup availability
The Goodman 5 Ton Packaged Heat Pump delivers reliable year-round comfort in a compact all-in-one design. With 60,000 BTU of cooling and heating capacity and up to 13.4 SEER2 efficiency, this packaged heat pump system is engineered for dependable performance, energy savings, and simplified installation. Designed for 208–230V power supply and factory-charged with environmentally friendly R-32 refrigerant.
Built with a high-efficiency scroll compressor and multi-speed ECM indoor blower motor, this packaged unit provides consistent airflow, quiet operation, efficient cooling, and dependable heating performance throughout the year. Its heavy-gauge galvanized steel cabinet with architectural gray powder-coated finish is designed to withstand harsh outdoor conditions, while the louvered condenser coil protection helps extend equipment life.
AHRI Certified and UL Listed for trusted performance and safety.
Features
- High-Efficiency Scroll Compressor — reliable heating and cooling performance
- Multi-Speed ECM Indoor Blower Motor — improved airflow control and quiet operation
- Heat Pump System — year-round heating and cooling from a single unit
- R-32 Refrigerant — lower environmental impact and improved efficiency
- 13.4 SEER2 Efficiency — dependable residential comfort performance
- All-Aluminum Evaporator Coil — enhanced durability and corrosion resistance
- Copper Tube / Aluminum Fin Condenser Coil — efficient heat transfer performance
- Quiet Horizontal Discharge Design — reduced operating sound levels
- Fully Charged System — faster and simpler installation
- Heavy-Gauge Galvanized Steel Cabinet — built for outdoor durability
- Powder-Coated Architectural Gray Finish — added weather protection
- Louvered Coil Protection — helps protect condenser coil from damage
- Fully Insulated Blower Compartment — improved efficiency and noise reduction
- Auxiliary Electric Heat Compatible — optional field-installed heat kits available
- AHRI Certified — independently verified performance ratings
- UL Listed — tested for safety and reliability
Documentation
Technical Specifications
| Specification | Details |
|---|---|
| Unit Type | Packaged Heat Pump |
| Cooling Capacity | 60,000 BTU/h |
| Heating Capacity | 60,000 BTU/h |
| Tonnage | 5 Ton |
| Efficiency | Up to 13.4 SEER2 |
| Refrigerant | R-32 |
| Compressor Type | Scroll |
| Electrical Supply | 208–230V / 60Hz / 1Ph |
| Blower Motor Type | ECM |
| Blower Speeds | 5 |
| Condenser Fan Motor | Totally Enclosed |
| Condenser Fan Horsepower | 1/4 HP |
| Minimum Circuit Ampacity | 36A |
| Maximum Overcurrent Protection | 50A |
