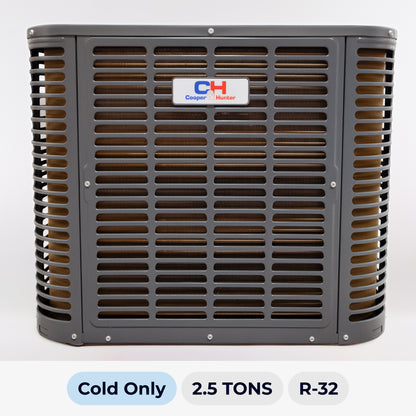

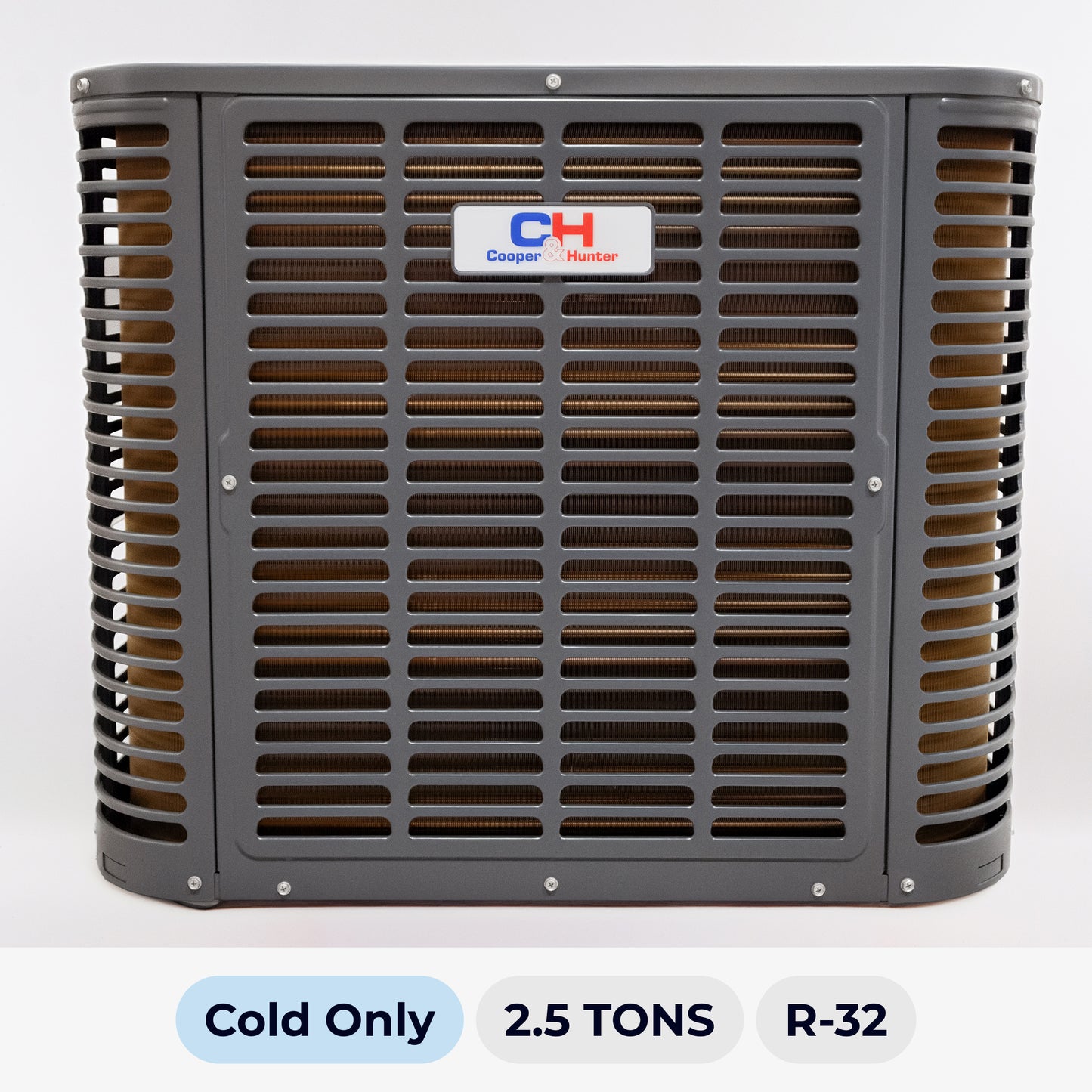

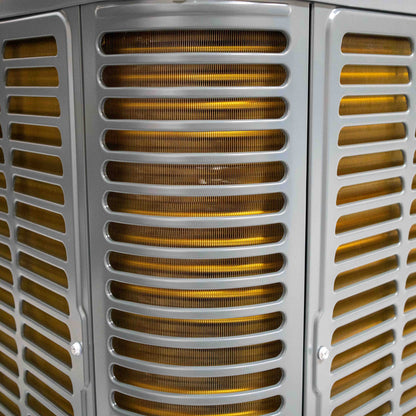

COOPER & HUNTER 2.5 TON CONDENSER COLD ONLY R-32

General Description

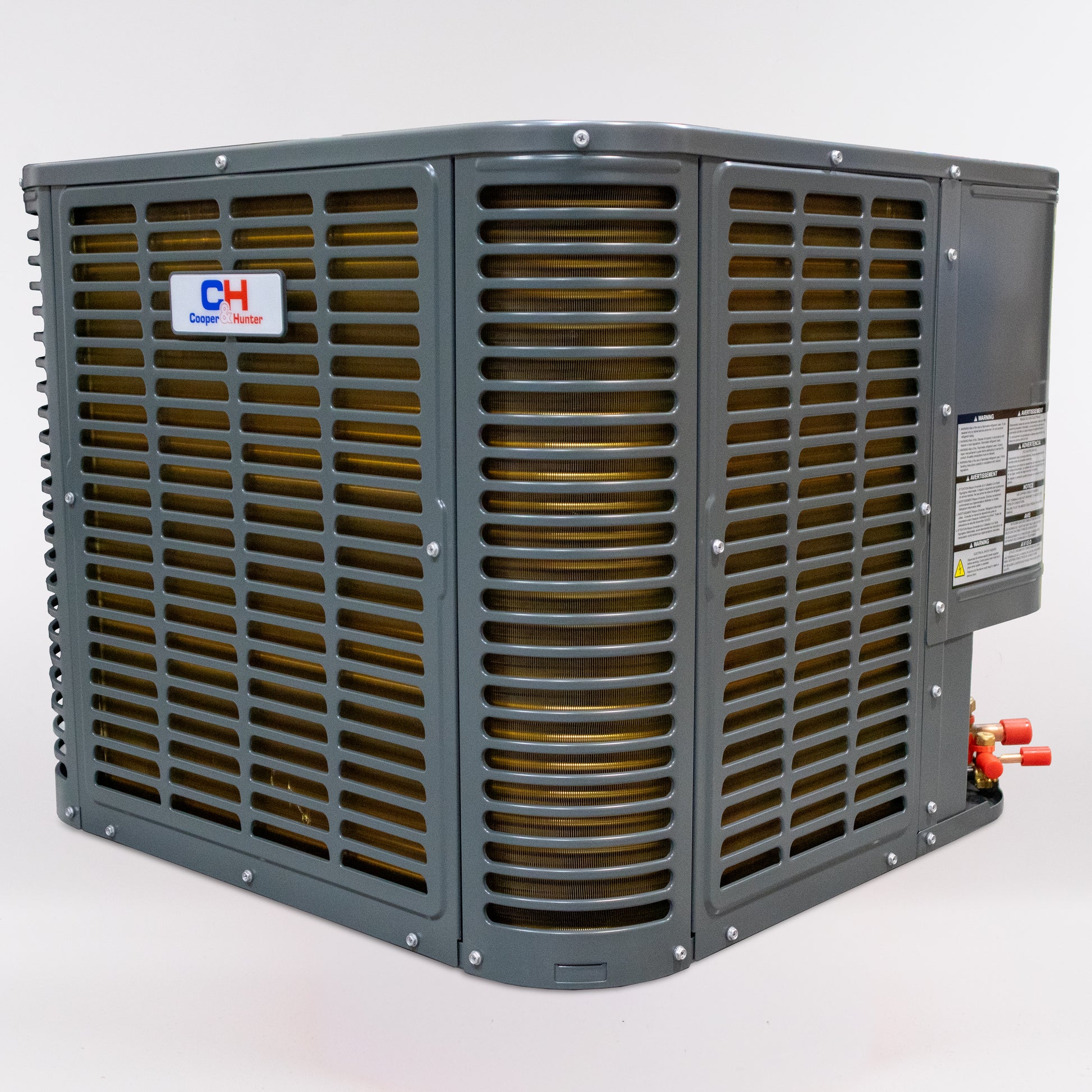

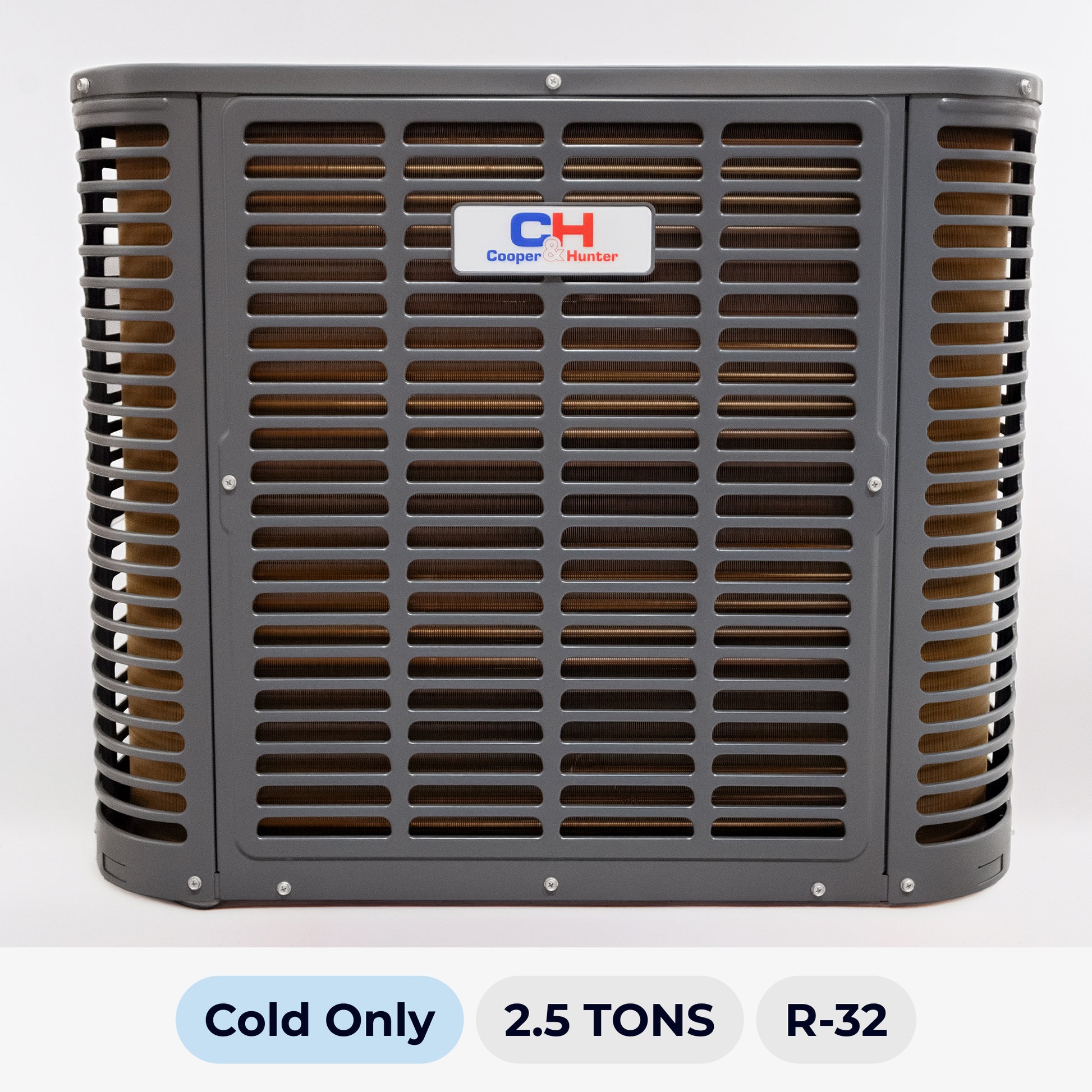

The Cooper & Hunter 2.5 Ton Top Discharge Condensing Unit (CH-UC30-230VO) is a mid-capacity outdoor unit built for residential and light commercial cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter air handlers and operates on environmentally responsible R-32 refrigerant.

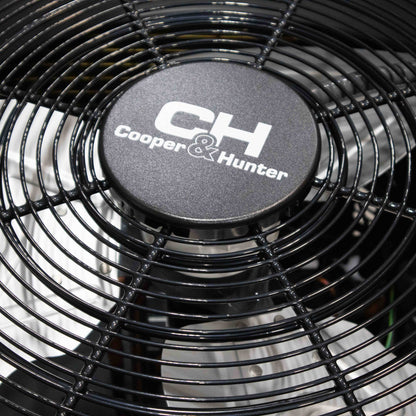

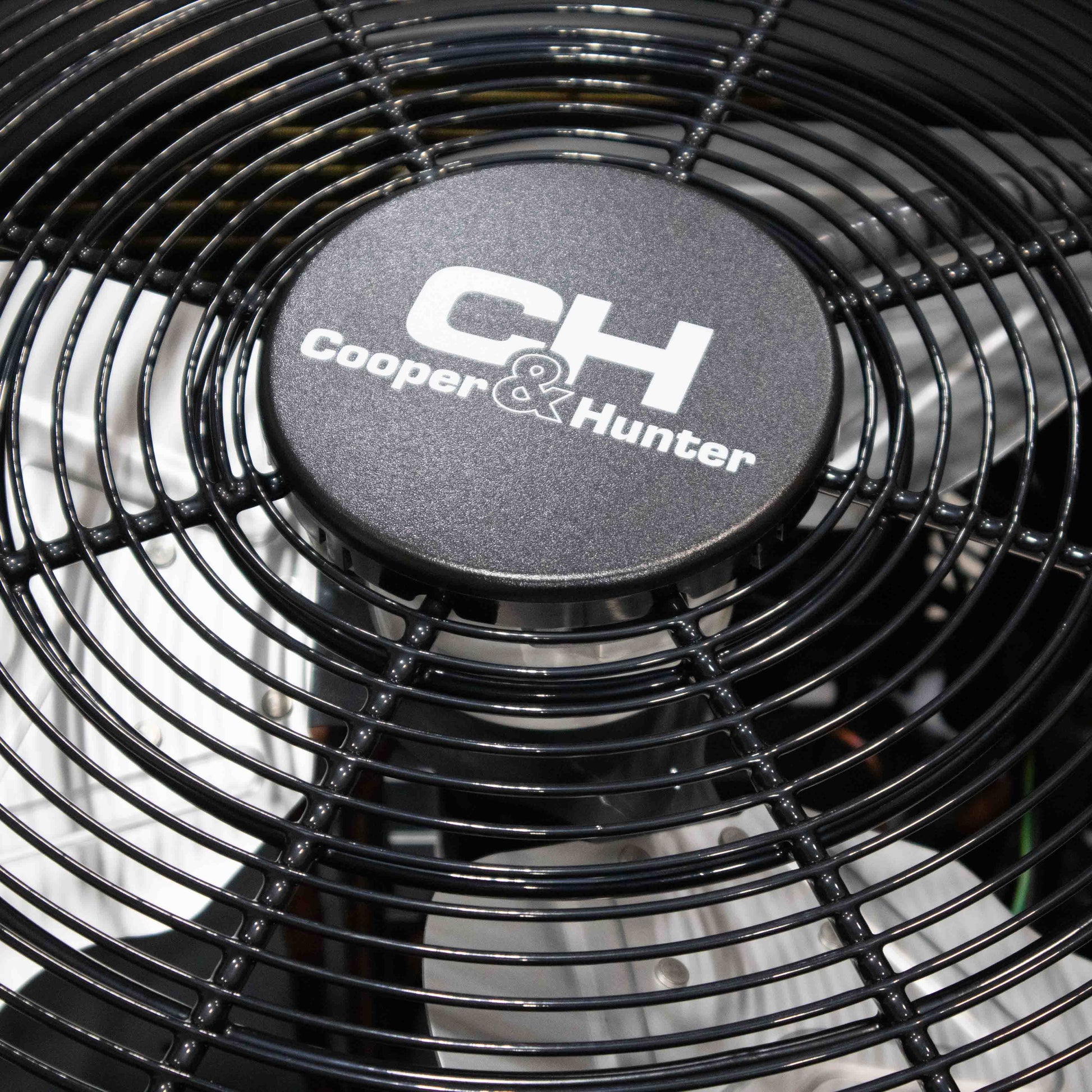

Powered by a rotary compressor, this unit delivers dependable cooling performance across a wide operating temperature range of 54°F to 120°F, making it well-suited for hot climate installations. The PSC outdoor fan motor provides consistent airflow and efficient heat rejection, while the top-discharge cabinet design promotes effective air circulation and minimizes recirculation in space-constrained outdoor environments. The unit arrives pre-charged with R-32 refrigerant and supports pipe runs of up to 130 feet with a maximum elevation difference of 65 feet, offering generous installation flexibility.

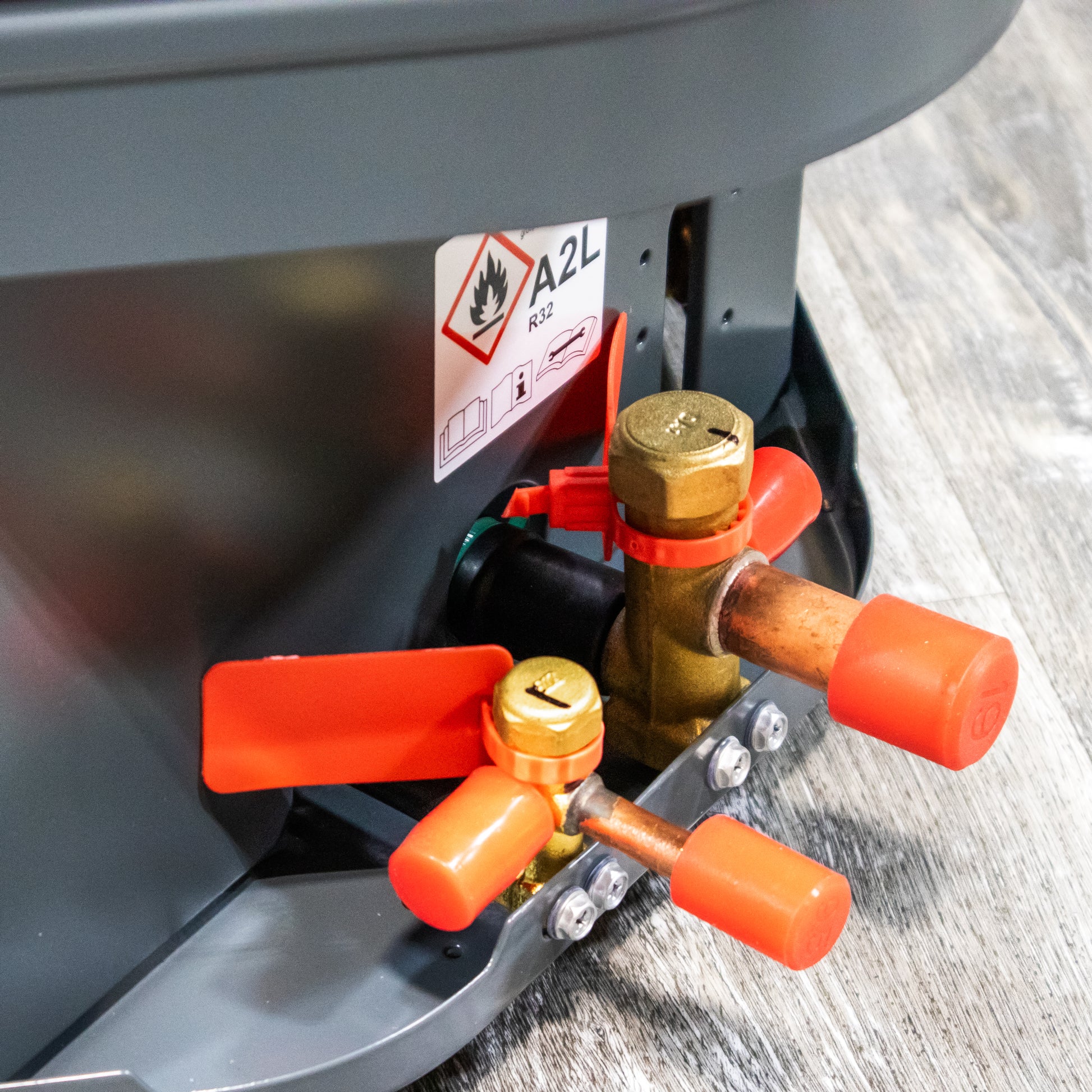

The larger cabinet footprint accommodates the increased capacity while maintaining a practical outdoor profile, and the single-phase 230V electrical configuration simplifies wiring for standard residential service. An R-32 refrigerant sensor ensures safe operation throughout. AHRI and ETL listed.

Cooling Capacity: 29,000 BTU/h (2.5 Ton) | Refrigerant: R-32 | EER2: 11.7 | SEER2: 14.3
