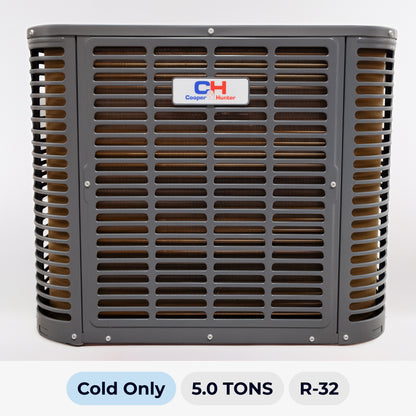

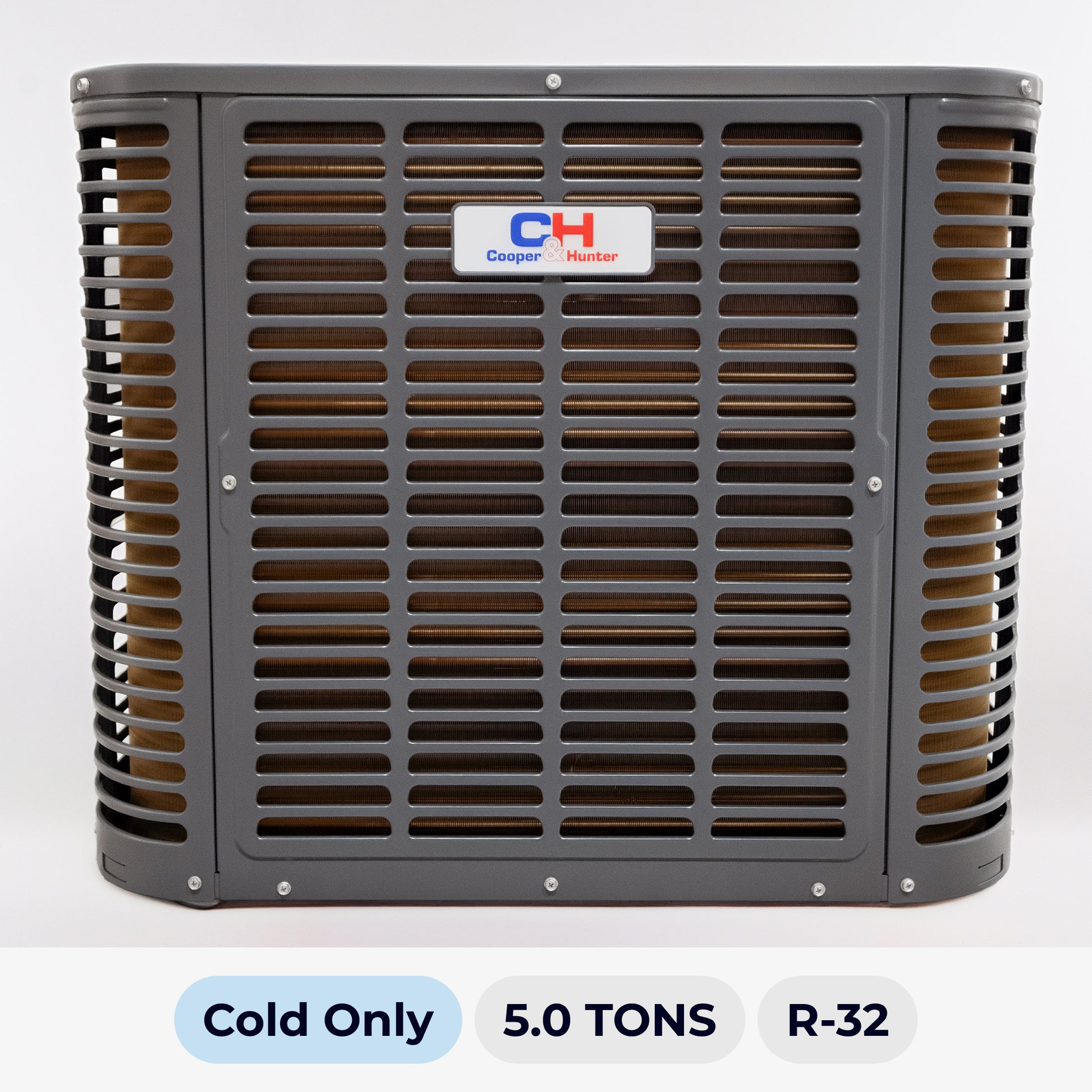

COOPER & HUNTER 5.0 TON CONDENSER COLD ONLY R-32

The Cooper & Hunter 5.0 Ton Top Discharge Condensing Unit (CH-UC60-230VO) is a large-capacity outdoor unit engineered for high-demand commercial and large residential cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter air handlers and operates on environmentally responsible R-32 refrigerant.

Powered by a scroll compressor, this unit delivers powerful, consistent cooling performance across a wide operating temperature range of 54°F to 120°F, making it well-suited for the most demanding hot climate installations. The scroll compressor technology provides quieter operation, greater energy efficiency, and enhanced durability compared to rotary designs at this capacity level. The PSC outdoor fan motor ensures robust airflow and efficient heat rejection, while the top-discharge cabinet design promotes effective air circulation even in space-constrained outdoor environments. The unit arrives pre-charged with R-32 refrigerant and supports extended pipe runs of up to 147 feet with a maximum elevation difference of 65 feet, offering exceptional installation flexibility for larger properties.

The single-phase 230V electrical configuration simplifies wiring, and the heavy-duty cabinet construction is built to handle the rigors of continuous high-capacity outdoor operation. An R-32 refrigerant sensor ensures safe operation throughout. AHRI and ETL listed.

Cooling Capacity: 56,000 BTU/h (5.0 Ton) | Refrigerant: R-32 | EER2: 11.2 | SEER2: 13.8

Documentation

• Technical Specifications

• AHRI Certificate

Technical Specs
