COOPER & HUNTER 5.0 TON AIR HANDLER R-32
COOPER & HUNTER 5.0 TON AIR HANDLER R-32
No se pudo cargar la disponibilidad de retiro

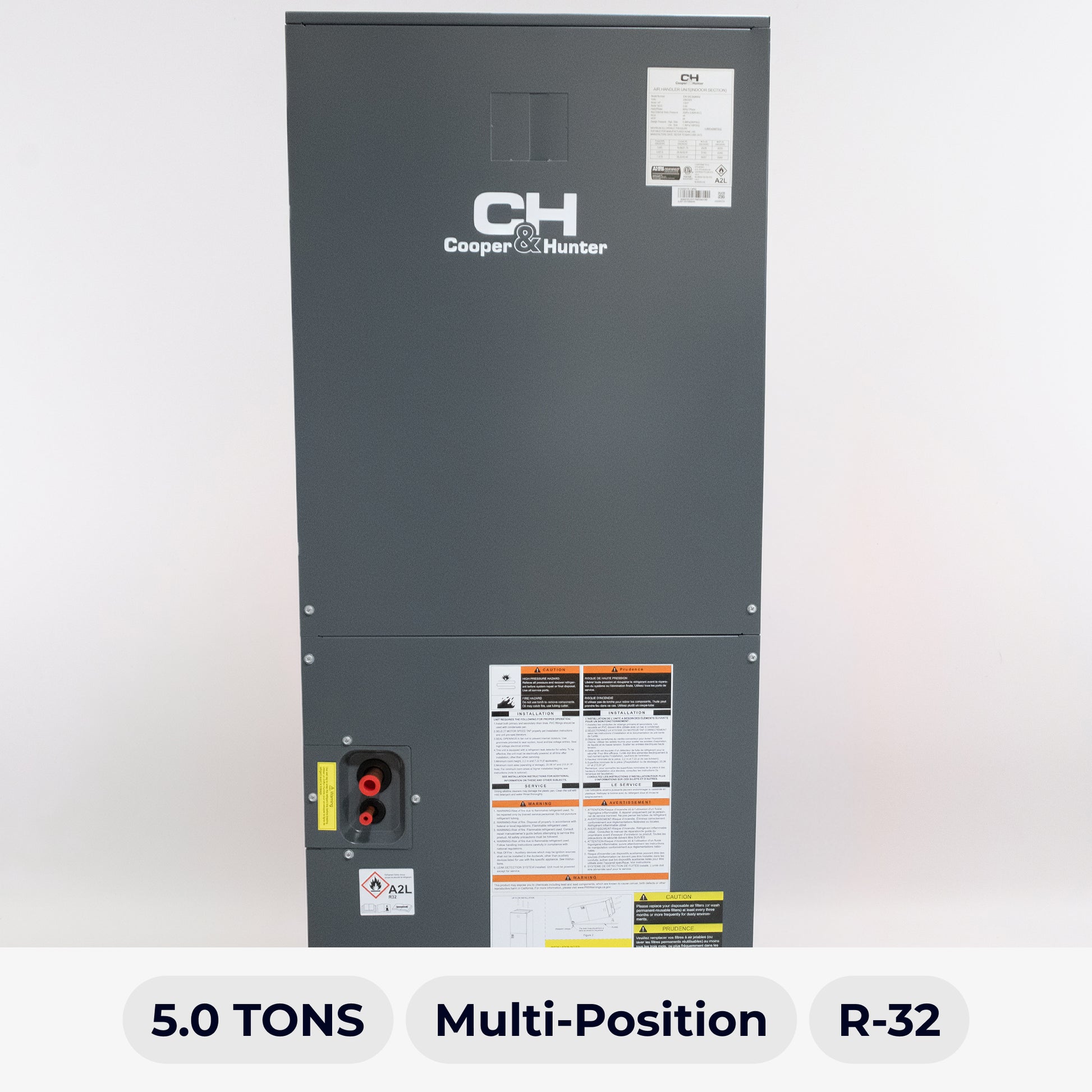

The Cooper & Hunter 5.0 Ton Multi-Position Air Handler (CH-UC60AHU) is a large-capacity indoor unit engineered for high-demand commercial and large residential cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter outdoor condensing units and operates on environmentally responsible R-32 refrigerant.
The unit features a multi-position design supporting 4 installation orientations, providing flexibility across a wide range of mechanical room configurations. A high-output ECM fan motor delivers powerful, energy-efficient airflow at 1,700 CFM, while the inner-grooved copper tubing and hydrophilic fins ensure maximum heat transfer efficiency across the full coil surface. The fully-insulated cabinet is engineered to achieve 2% or less air leakage, and the advanced internal welding process reduces the potential for long-term corrosion.
Horizontal and vertical condensate drain pans offer added installation versatility, and the integrated filter rack with toolless door access keeps routine maintenance simple and straightforward. Compatible with all 3rd-party 24V wall thermostats. AHRI and ETL listed.
Cooling Capacity: 56,000 BTU/h (5.0 Ton) | Refrigerant: R-32
Documentation
Technical Specs
| Specification | CH-UC60AHU |
|---|---|
| Cooling Capacity | 56,000 BTU/h |
| MCA | 7 A |
| MOP | 10 A |
| Fan Motor Type | ECM |
| Power Supply | AC 220–240V / 50–60Hz |
| Rated Current | 5.4 A |
| Fan Motor Output | 560 W |
| Indoor Air Flow | 1,700 CFM |
| Indoor Noise Level | 60 dB(A) |
| Fin Material | Hydrophilic |
| Tube Material | Inner Grooved Copper |
| Throttling Type | Piston |
| Unit Dimensions (W × H × D) | 22 × 53.3 × 24.5 in |
| Packing Dimensions (W × H × D) | 28 × 54.7 × 25.2 in |
| Net / Gross Weight | 170 / 183 lbs |
| Refrigerant | R-32 |
