COOPER & HUNTER

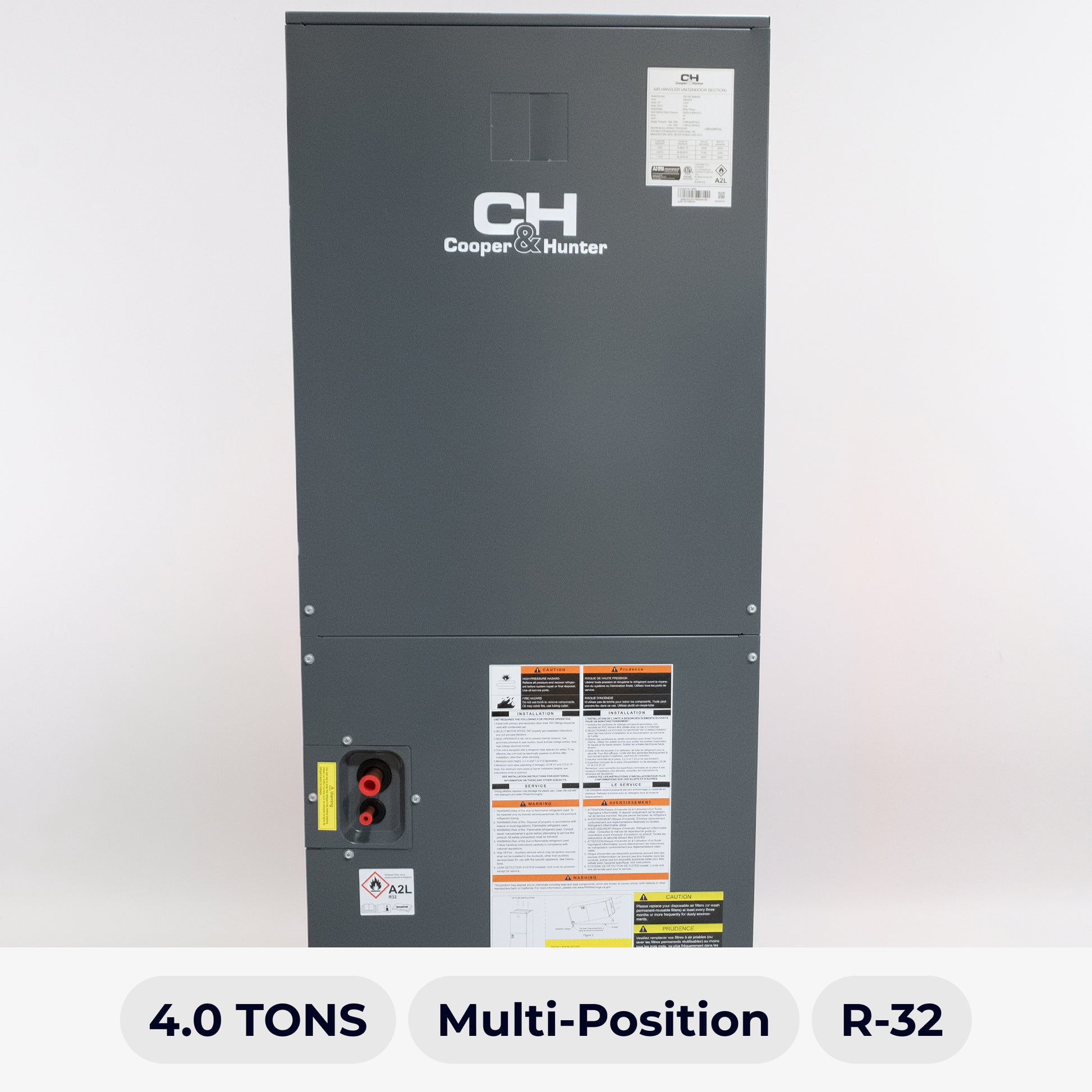

COOPER & HUNTER 4.0 TON AIR HANDLER R-32
COOPER & HUNTER 4.0 TON AIR HANDLER R-32
No se pudo cargar la disponibilidad de retiro
The Cooper & Hunter 4.0 Ton Multi-Position Air Handler (CH-UC48AHU) is a heavy-duty indoor unit built for demanding residential and commercial cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter outdoor condensing units and operates on environmentally responsible R-32 refrigerant.
The unit features a multi-position design supporting 4 installation orientations, accommodating a wide variety of mechanical room layouts. A high-output ECM fan motor delivers robust, energy-efficient airflow at 1,490 CFM, while the inner-grooved copper tubing and hydrophilic fins work together to maximize heat transfer performance across the full coil surface. The fully-insulated cabinet is engineered to achieve 2% or less air leakage, and the advanced internal welding process minimizes the risk of long-term corrosion.
Horizontal and vertical condensate drain pans provide installation flexibility, and the integrated filter rack with toolless door access simplifies routine maintenance. Compatible with all 3rd-party 24V wall thermostats. AHRI and ETL listed.
Cooling Capacity: 46,000 BTU/h (4.0 Ton) | Refrigerant: R-32
Documentation
Technical Specs
| Specification | CH-UC48AHU |
|---|---|
| Cooling Capacity | 46,000 BTU/h |
| MCA | 7 A |
| MOP | 10 A |
| Fan Motor Type | ECM |
| Power Supply | AC 220–240V / 50–60Hz |
| Rated Current | 5.4 A |
| Fan Motor Output | 560 W |
| Indoor Air Flow | 1,490 CFM |
| Indoor Noise Level | 59 dB(A) |
| Fin Material | Hydrophilic |
| Tube Material | Inner Grooved Copper |
| Throttling Type | Piston |
| Unit Dimensions (W × H × D) | 22 × 53.3 × 24.5 in |
| Packing Dimensions (W × H × D) | 28 × 54.7 × 25.2 in |
| Net / Gross Weight | 159 / 172 lbs |
| Refrigerant | R-32 |
