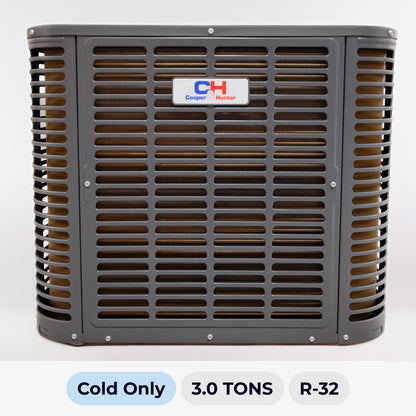

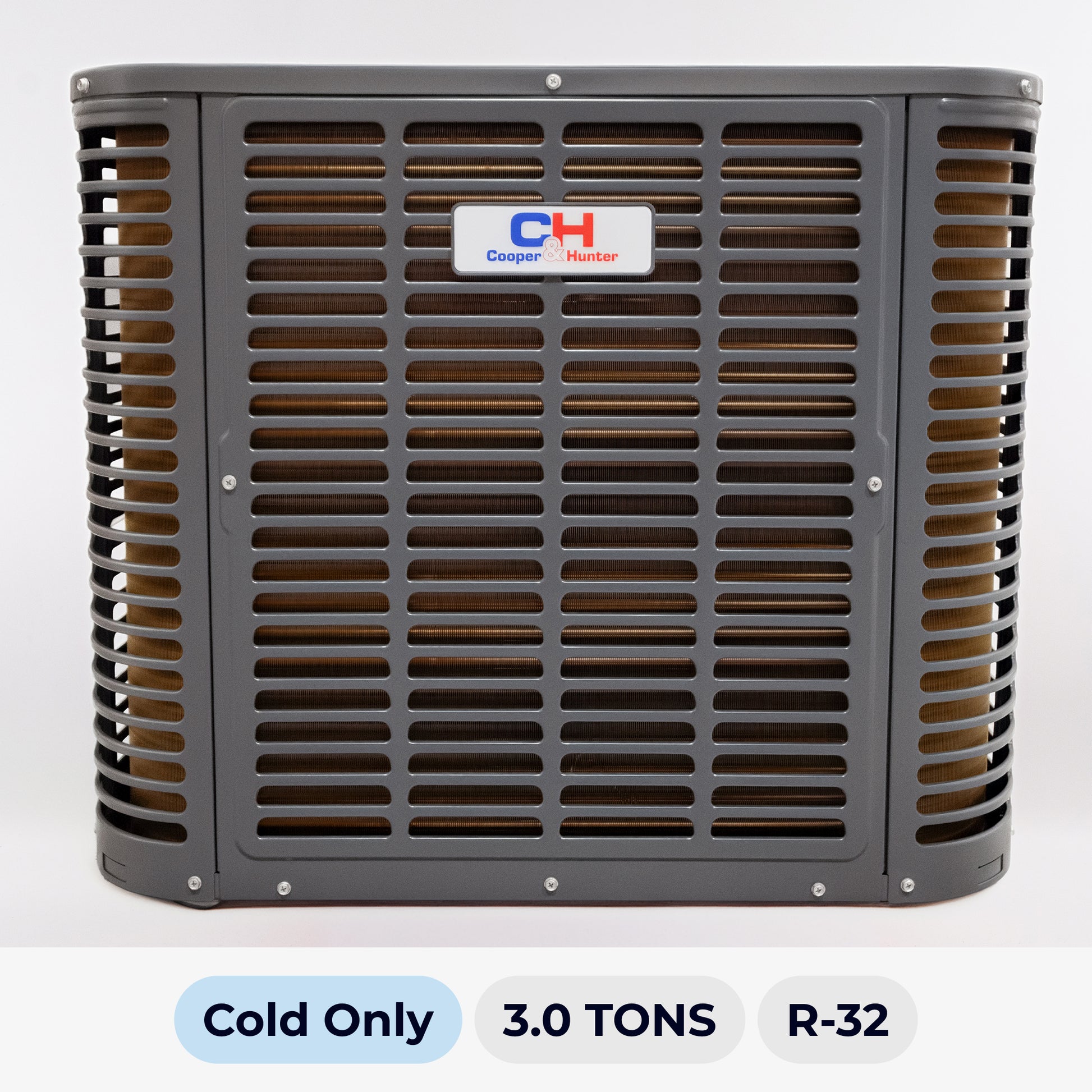

COOPER & HUNTER 3.0 TON CONDENSER COLD ONLY R-32
COOPER & HUNTER 3.0 TON CONDENSER COLD ONLY R-32
No se pudo cargar la disponibilidad de retiro
General Description
The Cooper & Hunter 3.0 Ton Top Discharge Condensing Unit (CH-UC36-230VO) is a robust outdoor unit designed for larger residential and light commercial cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter air handlers and operates on environmentally responsible R-32 refrigerant.
Powered by a rotary compressor, this unit delivers strong, reliable cooling performance across a wide operating temperature range of 54°F to 120°F, making it an excellent choice for hot climate installations. The PSC outdoor fan motor ensures consistent airflow and efficient heat rejection, while the top-discharge cabinet design promotes effective air circulation and minimizes recirculation in space-constrained outdoor environments. The unit arrives pre-charged with R-32 refrigerant and supports pipe runs of up to 130 feet with a maximum elevation difference of 65 feet, providing ample installation flexibility.
The single-phase 230V electrical configuration simplifies wiring for standard residential service, and the sturdy cabinet construction is built to withstand the demands of continuous outdoor operation. An R-32 refrigerant sensor ensures safe operation throughout. AHRI and ETL listed.
Cooling Capacity: 33,000 BTU/h (3.0 Ton) | Refrigerant: R-32 | EER2: 11.7 | SEER2: 14.3
Documentation
Technical Specs
| Specification | CH-UC36-230VO |
|---|---|
| Cooling Capacity | 33,000 BTU/h |
| EER2 | 11.7 |
| SEER2 | 14.3 |
| Power Supply | 230V / 1Ph / 60Hz |
| Min. / Max. Voltage | 187 / 253 V |
| MCA | 32 A |
| MOP | 40 A |
| Compressor Type | Rotary |
| Locked Rotor Amps (LRA) | 75 A |
| Fan Motor Type | PSC |
| Fan Motor Output | 205 W / 1/6 HP |
| Fan Motor Full Load Amps (FLA) | 1.4 A |
| Unit Dimensions (W × H × D) | 29.14 × 25 × 29.14 in |
| Packing Dimensions (W × H × D) | 29.9 × 25.9 × 29.9 in |
| Net / Gross Weight | 160 / 170 lbs |
| Liquid Line Connection | Ø 3/8 in |
| Gas Line Connection | Ø 3/4 in |
| Max. Refrigerant Pipe Length | 130 ft |
| Max. Level Difference | 65 ft |
| Refrigerant Type / Charge | R-32 / 15 ft |
| Operating Temp. Range (Cooling) | 54°F – 120°F |
