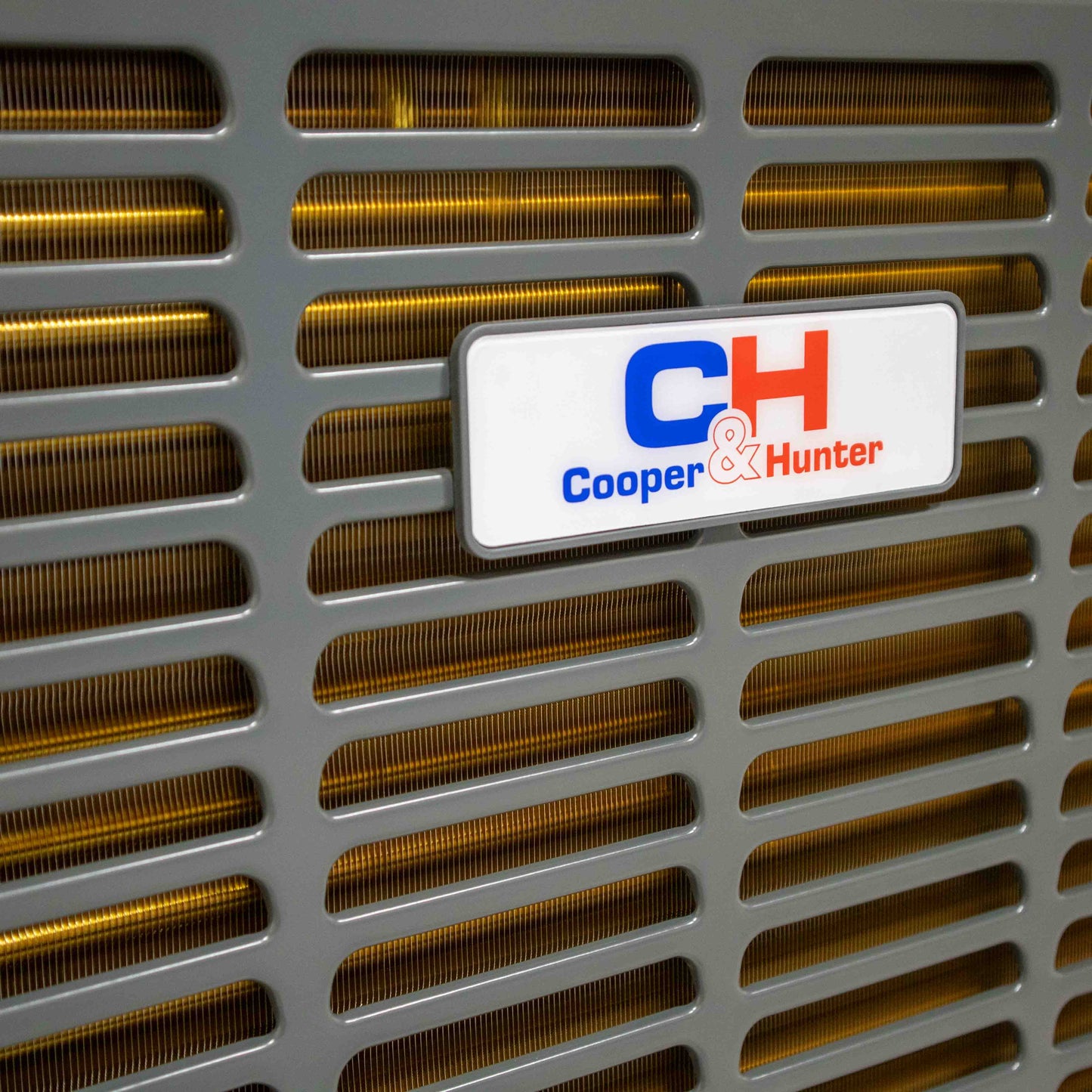

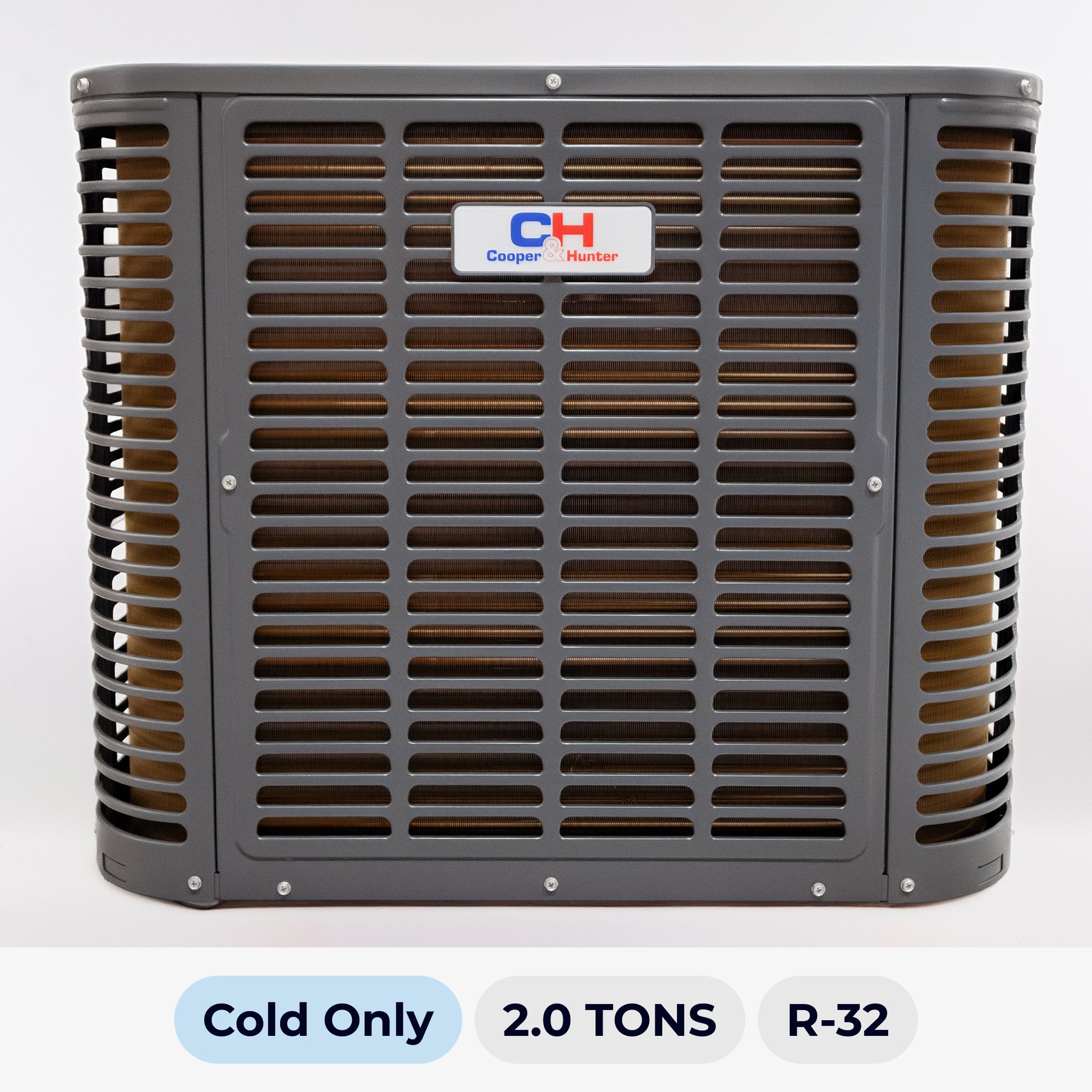

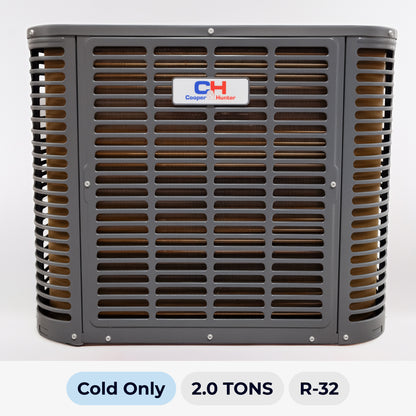

COOPER & HUNTER 2.0 TON CONDENSER COLD ONLY R-32

The Cooper & Hunter 2.0 Ton Top Discharge Condensing Unit (CH-UC24-230VO) is a capable, compact outdoor unit designed for residential and light commercial cooling applications. Part of the Top Discharge Split System lineup, it pairs with compatible Cooper & Hunter air handlers and operates on environmentally responsible R-32 refrigerant.

Powered by a rotary compressor, this unit delivers reliable cooling performance across a wide operating temperature range of 54°F to 120°F, making it well-suited for hot climate installations. The PSC outdoor fan motor ensures consistent airflow and efficient heat rejection, while the top-discharge cabinet design promotes effective air circulation and reduces recirculation in space-constrained outdoor environments. The unit arrives pre-charged with R-32 refrigerant and supports pipe runs of up to 130 feet with a maximum elevation difference of 65 feet, providing ample installation flexibility.

The single-phase 230V electrical configuration simplifies wiring for standard residential service, and the compact cabinet footprint makes it a practical choice for tight outdoor installations. An R-32 refrigerant sensor ensures safe operation throughout. AHRI and ETL listed.

Cooling Capacity: 22,700 BTU/h (2.0 Ton) | Refrigerant: R-32 | EER2: 11.7 | SEER2: 14.3

Documentation

• Technical Specifications
• AHRI Certificate

Technical Specs
